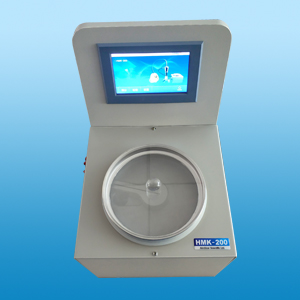

HMK-200 Air Jet Sieve——Standard instrument for particle size analysis in pharmaceutical industry
It is specified in (ChP) Chinese Pharmacopoeia 2015/2020 edition : For samples with particle size less than 75μm, air jet sieving method should be used. See “particle size and particle size distribution determination method”of Chinese pharmacopoeia 2015/2020 edition for details.
Air jet sieve standard testing sieve
Air jet sieve working panel
Air jet sieve working principle
Air jet sieving machine plexiglass cover
Air jet sieve seal
Air jet sieve negative air pressure gauge
In aspects of function and design, HMK-200 Air Jet Sieve continues the advantages of classic 200LS-N Air Jet Sieve, and has the unique characteristics :
Work efficiently
All standard functions and evaluation functions are integrated into the HMK-200 Air Jet Sieve. Design the system interface with fully consideration of the personnel operation, and keep it simple and reliable, as well as reducing supporting auxiliary equipment.
Automatic negative pressure control
HMK-200 Air Jet Sieve integrated automatic controller is used to monitor the pressure in the sieving room, so as to monitor the dispersion effect of the nozzle on materials. The controller can keep the pressure stable throughout the sieving process. It means more efficient, reliable and comfortable operation.
HMKTest sieve mesh recognizer
HMKTest meshes are equipped with an identification chip, which can be automatically identified and recorded by the built-in software in the air jet sieve. No need to manually input the mesh size and prevent input errors. Automatically generate the analysis log. This is undoubtedly a great advantage for analyzing different materials with different sieve mesh settings in the laboratory. Process parameters such as sieving time and negative pressure can be stored separately and be read automatically during sieving operation.
Intelligent sieving time determination
Application of HMKTest function can ensure that users choose the correct sieving time. Sieving time is a key parameter in the sieving process, it is neither more nor less. This will determine whether the sieving is successful, that is, whether the sample is fully sieved or the sieving results are repeatable.
Ergonomic design
Delicate and smooth lines and smart touch screen.
Upgrade
Product functions are constantly upgraded.
Reliable quality
HMK-200 ensures high quality analysis results because the integrated components can eliminate all source of error. This means greatly improved reliability of users, samples and data, and complies with all the latest international standards.
Specifications
Measurement range： Sieve mesh with diameter 200/203mm（20μm~4mm）. Sieve mesh with diameter 76mm（10mμm~2.5mm）
Screen： HD 7″IPS touch screen.
Sieve mesh: The mesh has a chip for automatic identification
Gas flow： 30-115m3/h
Negative pressure：1500~5500pa
Size LBH：503*370*380mm
