Mikro air jet sieve 510-1904291623
mikro air jet sieve

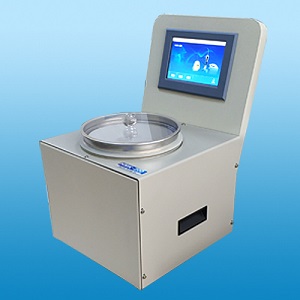

HMK-200 Air Jet Sieve, is designed for the need of rapid and accurate sieving of fine powder (5μm~5000μm) in modern laboratories. Because the fine powder with particle size less than 75μm is prone to agglomeration, static electricity and clogging the mesh hole in sieving process, the traditional vibrating sieve is unable to complete accurate and rapid sieving for such fine powder. These fine powders include coating, cement, coal ash powder, flour, Chinese and western medicine fine powder, glass fiber fine powder and other materials. HMK-200 Air Jet Sieve has a specially designed rotating air injection tank and electrostatic elimination device to perfectly satisfy the rapid and accurate sieving results. It is widely used in powdery materials’ sieving and grading in the industry of chemical industry, papermaking, metallurgy, building materials, medicine, food, rubber, plastic, machinery, mining and other industry.
English name
HMK-200 Air Jet Sieve
Applicable material
Powders prone to damp and have static electricity
Grading range
5um-5000um
Handling capacity
1-100g / time（gross weight）
Features
1. Reliable sieving results reproducibility, high efficiency sieving effect, which save time.
2. LCD digital display and accurately control sieving time.
3. The vacuum degree is displayed in digital, the vacuum generator is adjusted to ensure sieving repeatability.
4. Specially designed rotating air jet tank, evenly disperses materials, eliminates aggregation.
5. Full transparent window sieve cover, helps the real-time and continuous monitoring of sieving status and the whole process.
6. Can choose static electricity eliminating device, and sieve electrostatic material without worry.
7. Can choose material preheater, easily sieve strong moisture-absorbing powder.
8. Stainless steel case, bright and clean instrument surface with anti-wear and anti-corrosion paint, is easy to clean, strong and durable.
9. Sieve standard: comply with the standard ISO 3310-1, DIN EN10204.21 and ASTM E 11. It is made of stainless steel, it has surface polishing. Copper mesh or nylon mesh.
Working principle
The air flow from the rotating air jet tank under the sieve mesh continuously unclogs the mesh and continuously throws up fine powder, and then let it disperse back to the surface of the sieve mesh. Under the effect of the negative pressure of the vacuum generator (industrial vacuum cleaner) and the gravity of the material, the powders smaller than the mesh hole diameter rapidly pass through the sieve mesh to achieve rapid and accurate sieving results. HMK-200 meets international and domestic quality control standards in coating, cement, construction, coal, medicine and other industries.
Specifications
Mesh diameter: 200mm
Time set:1-99 minutes，LCD display，can be set.
Connect vacuum cleaner, the vacuum degree of sieving can be set, and displayed in panel LCD.
Instrument size
Width x height x depth 31 x 40 x 26cm.
